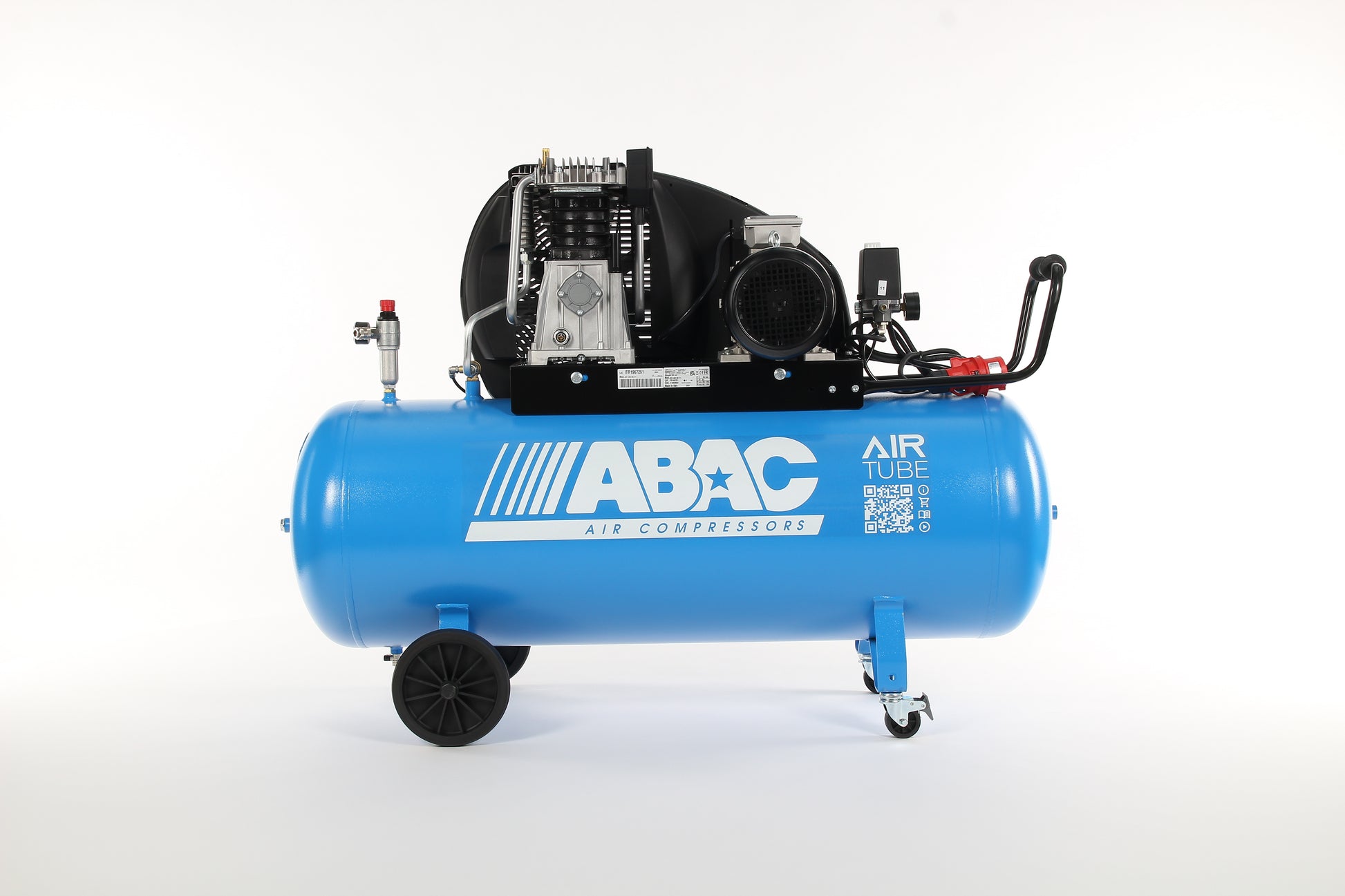

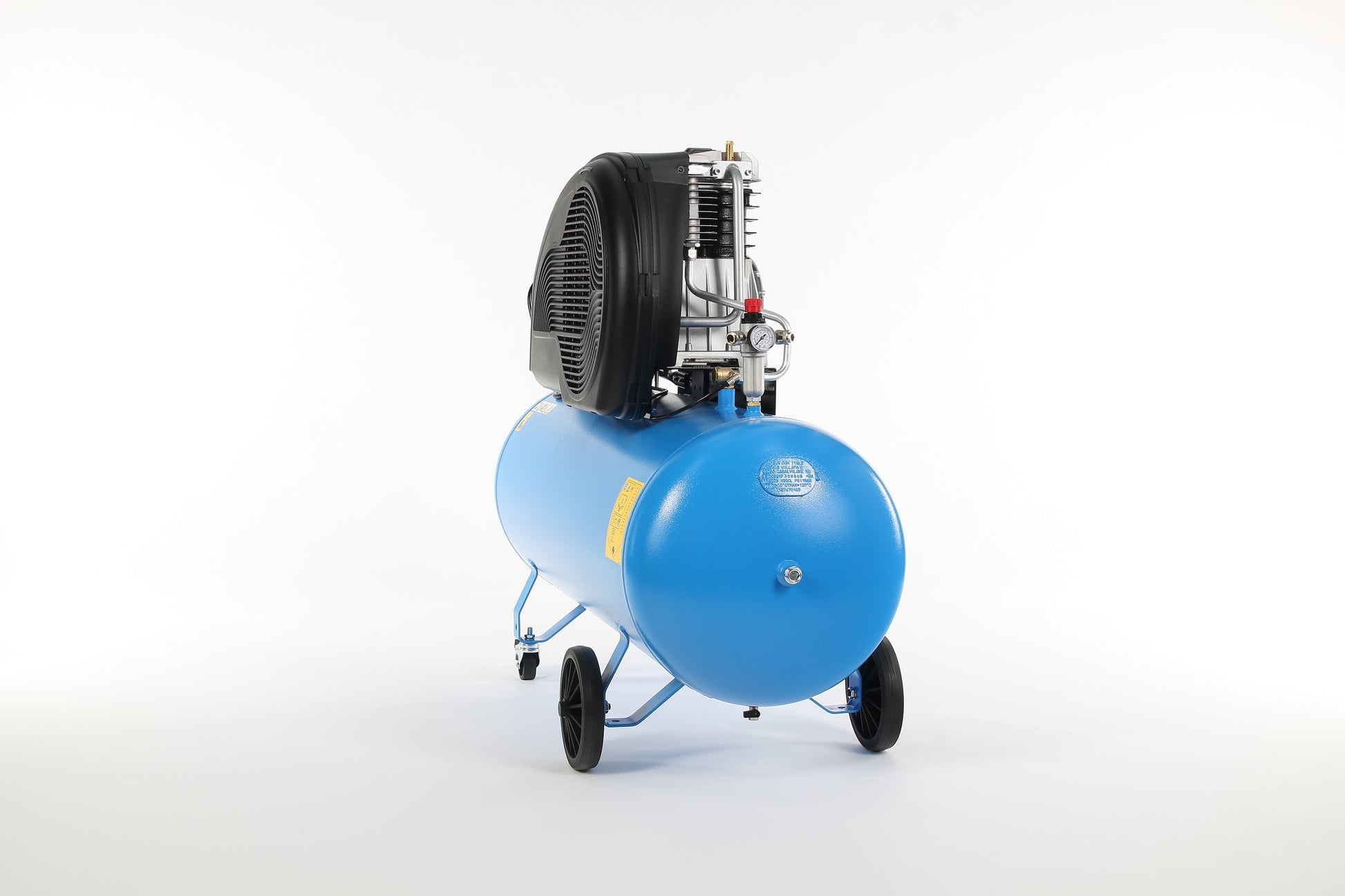

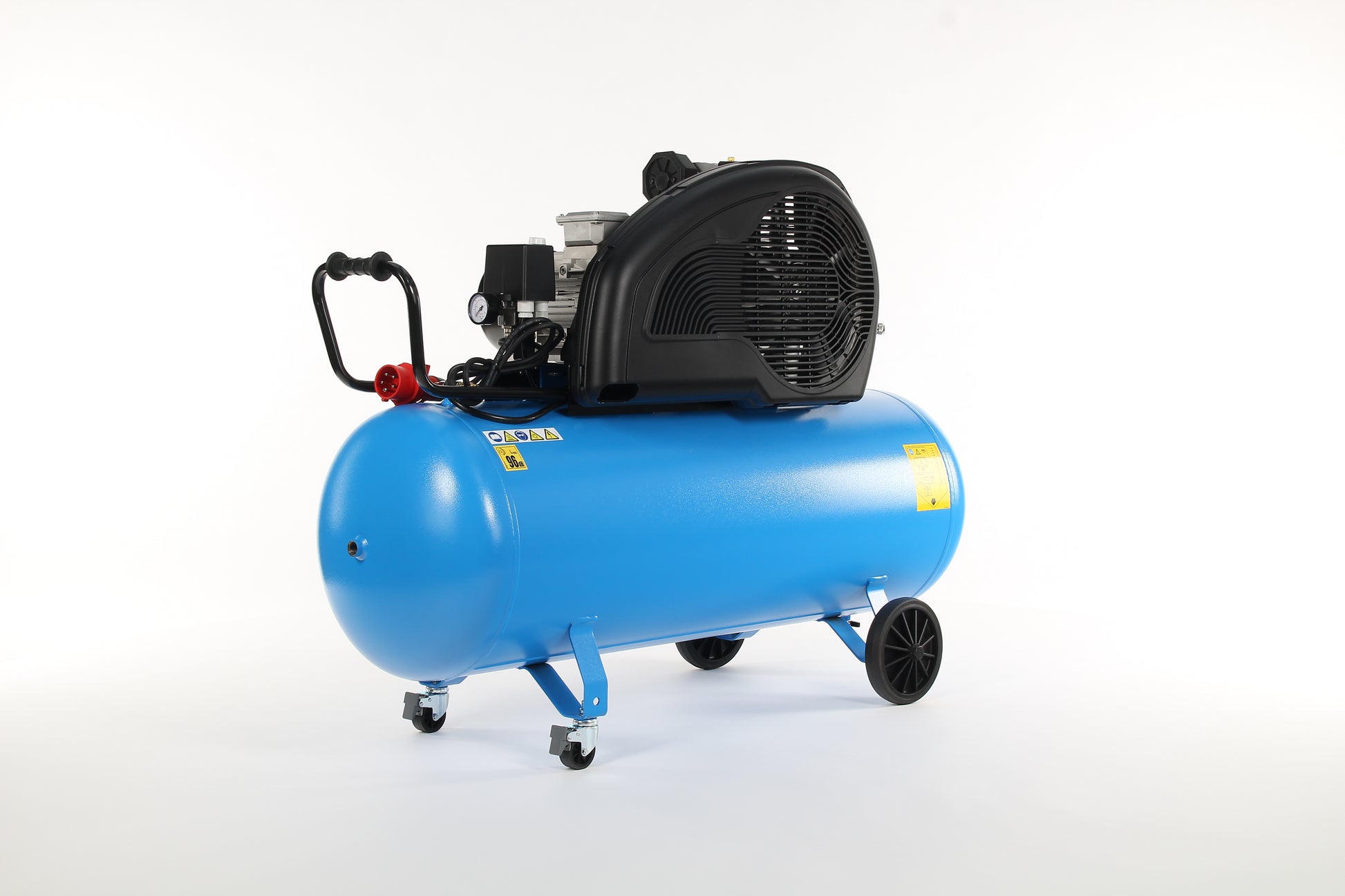

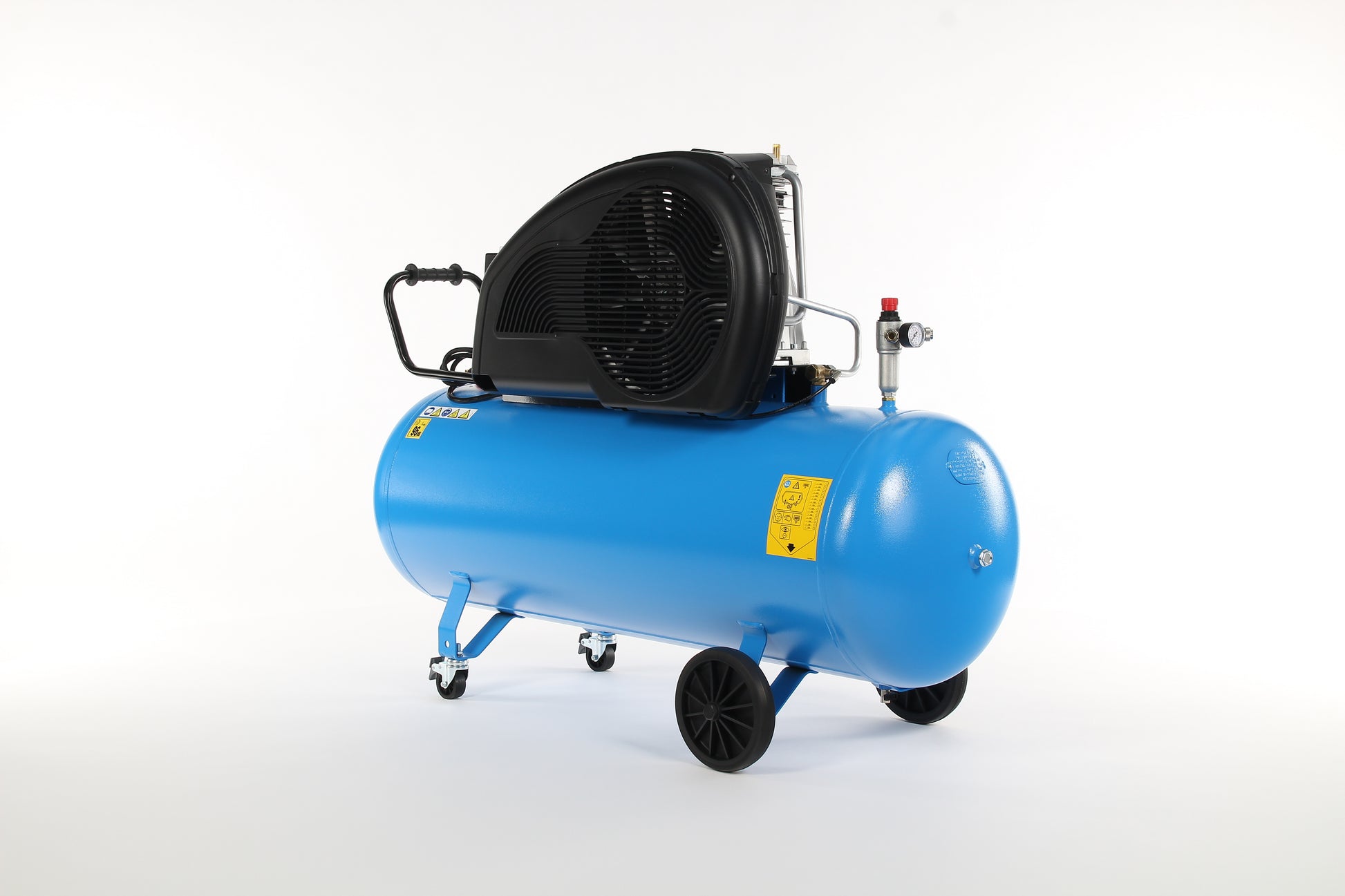

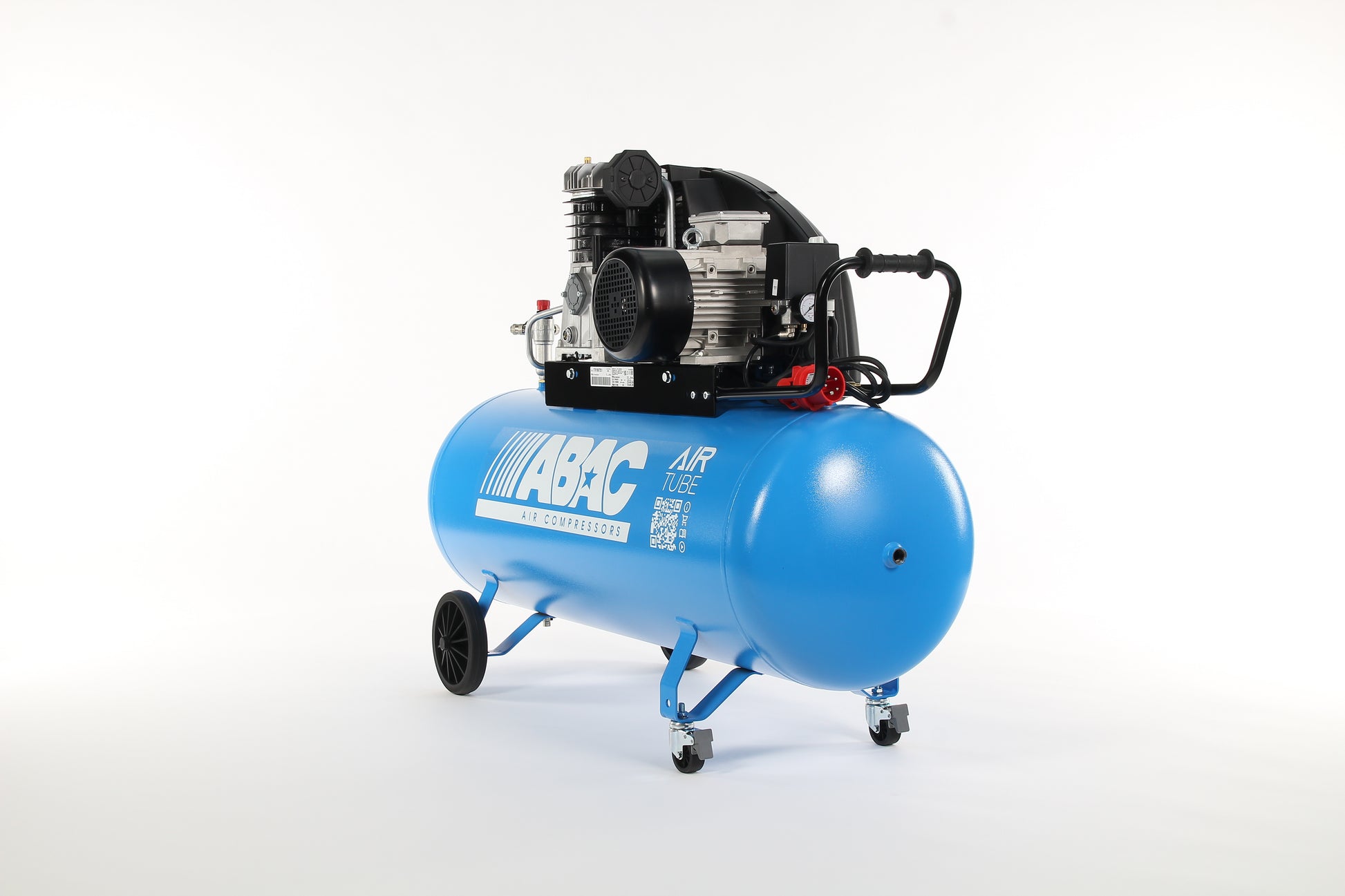

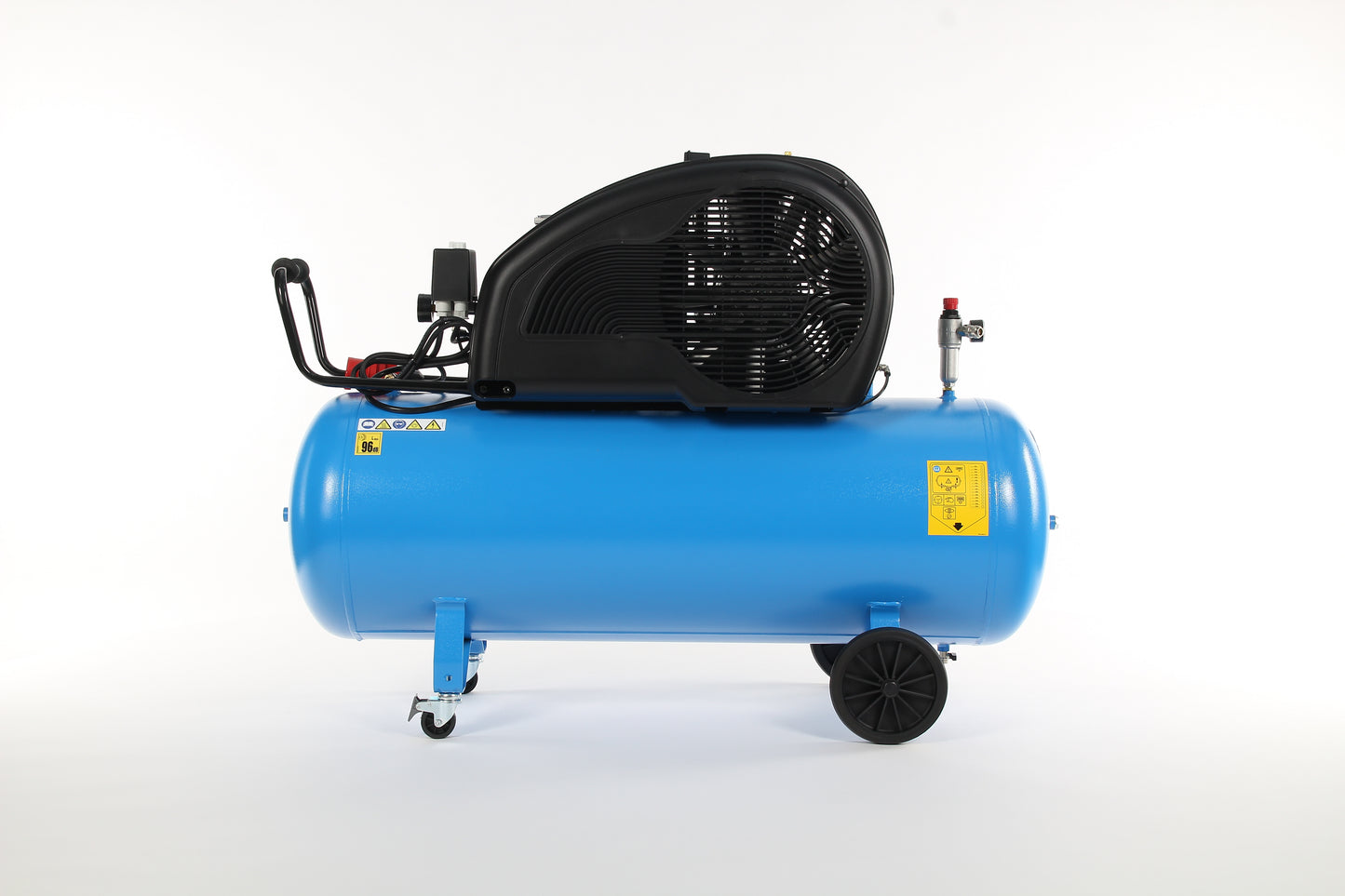

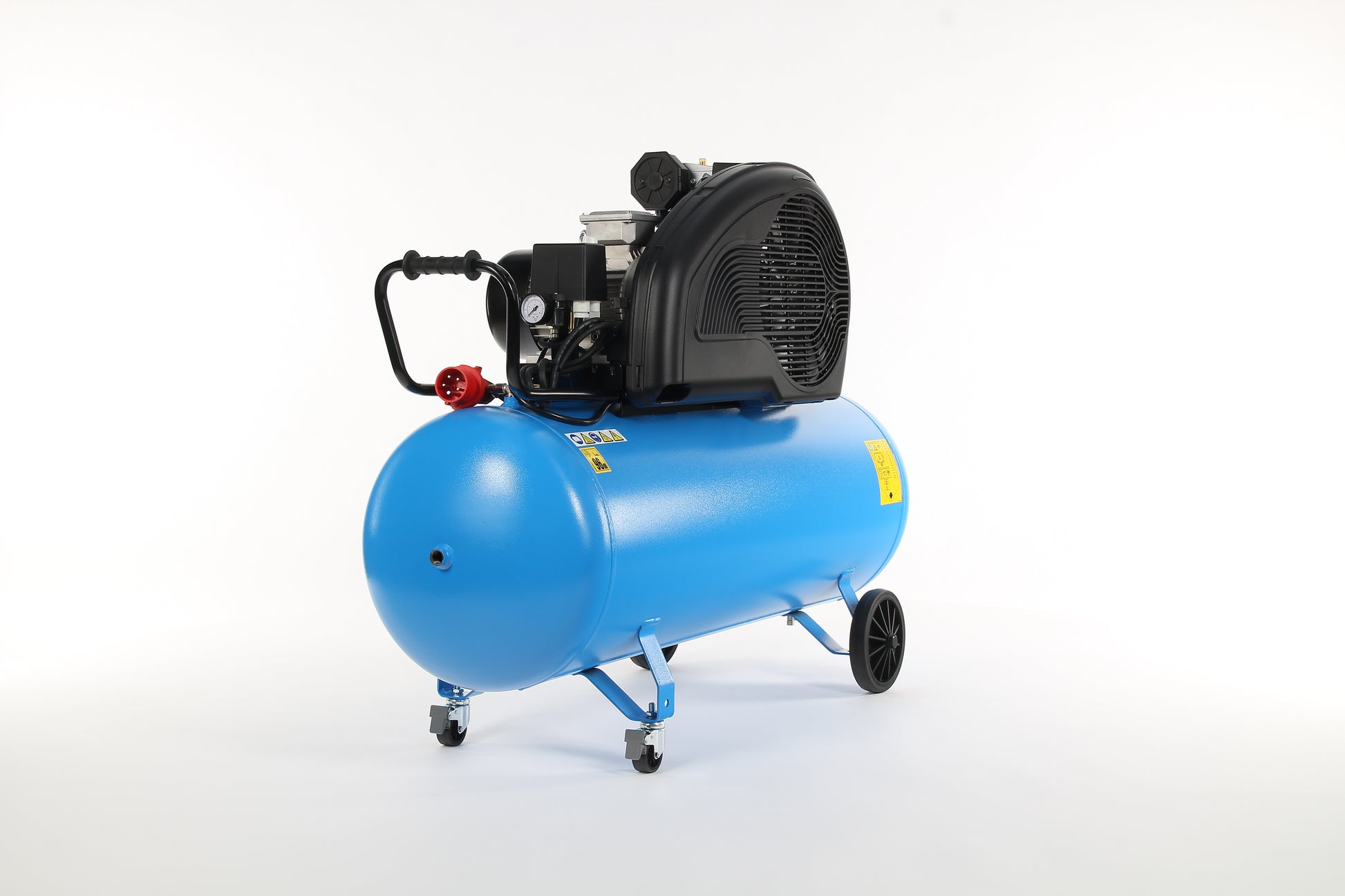

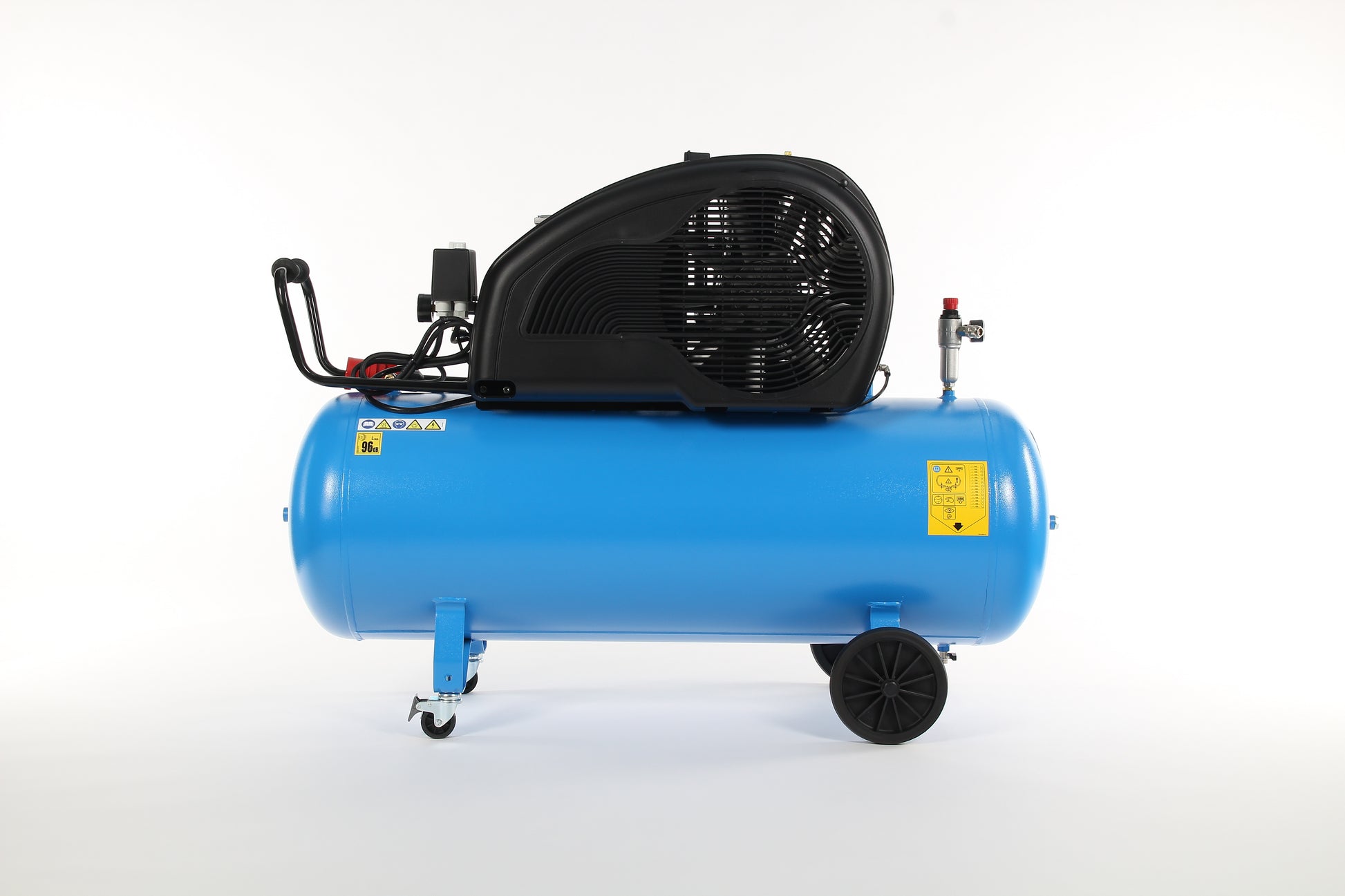

4116028561 ABAC Expert A49B CT4 Belt-driven Piston Compressor 4HP
4116028561 ABAC Expert A49B CT4 Belt-driven Piston Compressor 4HP
SPECIAL PRICE until end of June 2026
| Specification | Value |
|---|---|
| Max Pressure (Bar) | 11 Bar |
| Max Pressure (Psi) | 160 PSI |
| Pump speed | 1300 Rpm |
| Vessel size (lt) | 200 Litre |
| Vessel size (gal) | 44 Gal |
| Configuration | Tank Mounted |
| Air Displacement (l/min) | 553 l/min |
| Air Displacement (cfm) | 18.8 Cfm |
| Lubrication | Oil Lubricated |
| Pump Element | PAT49A |
| Motor (hp) | 4 Hp |
| Motor (kw) | 3 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 76 dB(A) |
| Noise Level (LWA) | 96 dB(A) |
Click here for full ABAC Brochure
Abac EXpert compressors are equipped with advanced technology to meet the rigorous demands of various industries. The range provides a robust solution that professionals can rely on.
The EXpert compressors are designed by incorporating all the available accessories for single-stage compressors today. They offer great stability, thanks to the double front swivel wheel, and the new handle makes it easier to move the compressor around your site. The outlet filter also protects even the most expensive tools.
Design features:
- Robust and ergonomic handle with rubber protection
- Air interface equipped with filtration or versatile double exit
- 200mm rear wheels designed for high resistance, plus 2x pivoting front wheels with brake
Technical features:
- Power range: from 2 to 5.5 horsepower
- Technology: oil free or lubricated single and double stage pump with aftercooler
- Power supply: 230/400 V – 1 or 3 Phases – 50/60 Hz
- Air delivery: equipped with filtration or versatile double exit
