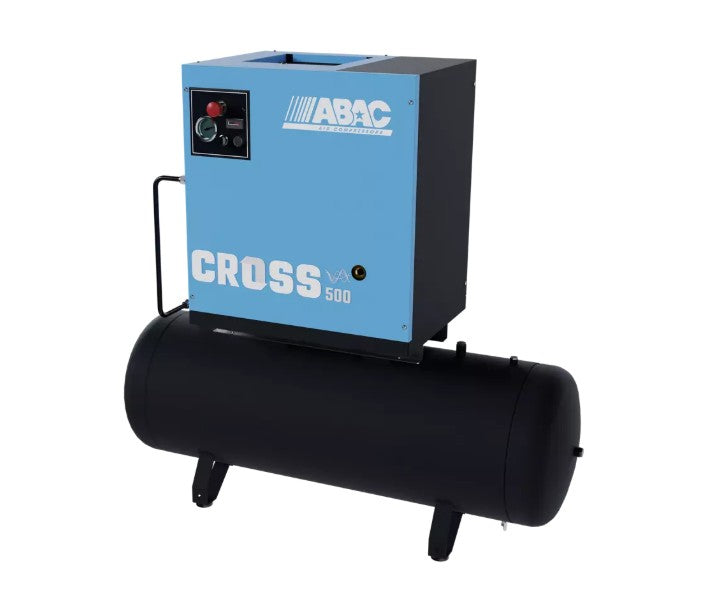

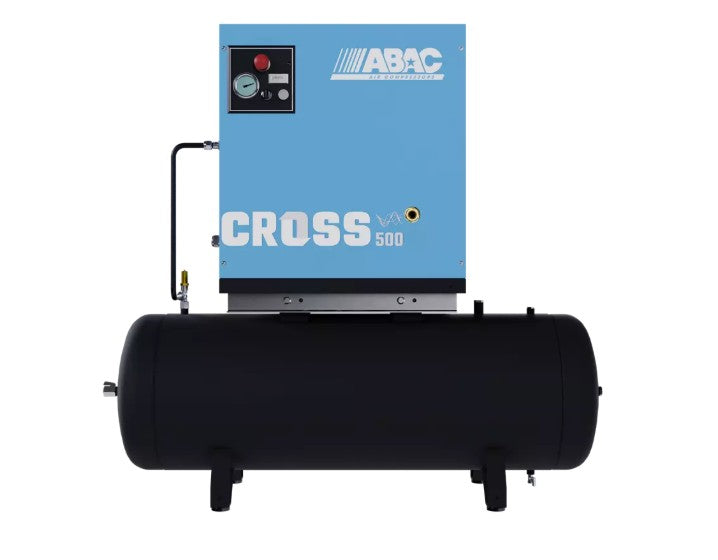

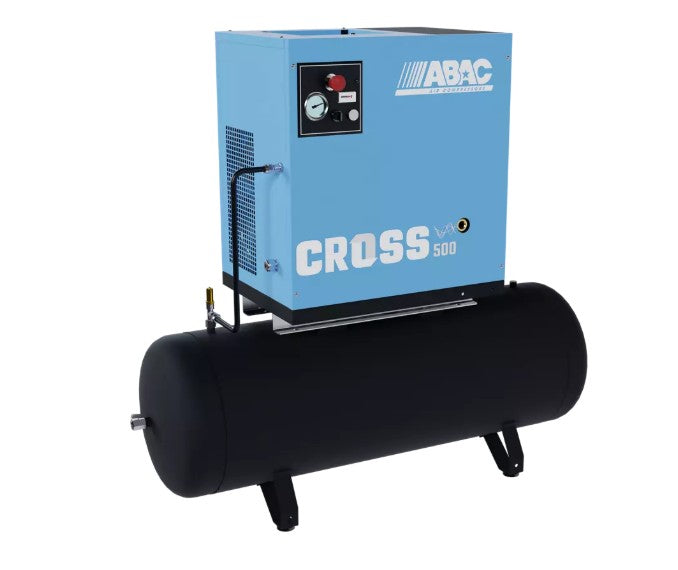

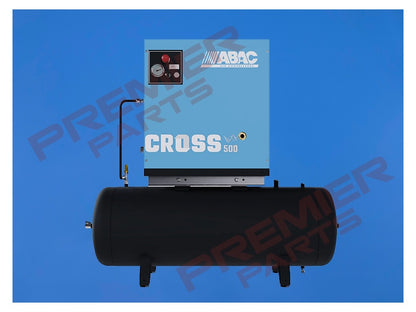

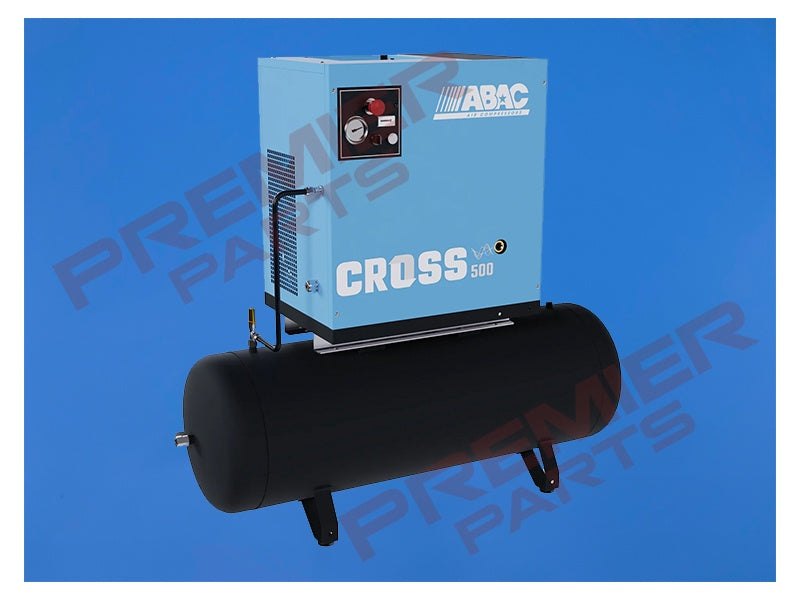

ABAC 4kW 200L Receiver Mounted Variable Speed Screw Compressor CROSS 500
ABAC 4kW 200L Receiver Mounted Variable Speed Screw Compressor CROSS 500
CROSS 500 10 400/50 200L RECEIVER MOUNTED SCREW COMPRESSOR
ABAC Cross 500 compressors with the advanced technology to use less energy and make more profit. Make your business better with great performance. You can achieve up to 40% more efficiency and 25% energy savings, whether you use Cross 500 all the time or just sometimes. Cross 500 compressors are strong and easy to service.
| Specification | Value |
|---|---|
| Performance data | |
| Max Working Pressure (psi) | 145 PSI |
| Max Working Pressure (Bar) | 10 Bar |
| Vessel size (lt) | 200 Litre |
| Vessel size (gal) | 53 Gal |
| Configuration | Tank Mounted |
| FAD Capacity Max (l/min) | 516 l/min |
| FAD Capacity Max (cfm) | 18.2 Cfm |
| Pump element | DH6,5 |
| Noise Level | 62 dB(A) |
| Motor (hp) | 5.5 Hp |
| Motor (kw) | 4 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Air connector | G1/2"F |
| Oil capacity | 3.8 Litre |
| Dimensions | |
| Length | 1440 mm |
| Height | 1320 mm |
| Width | 615 mm |
