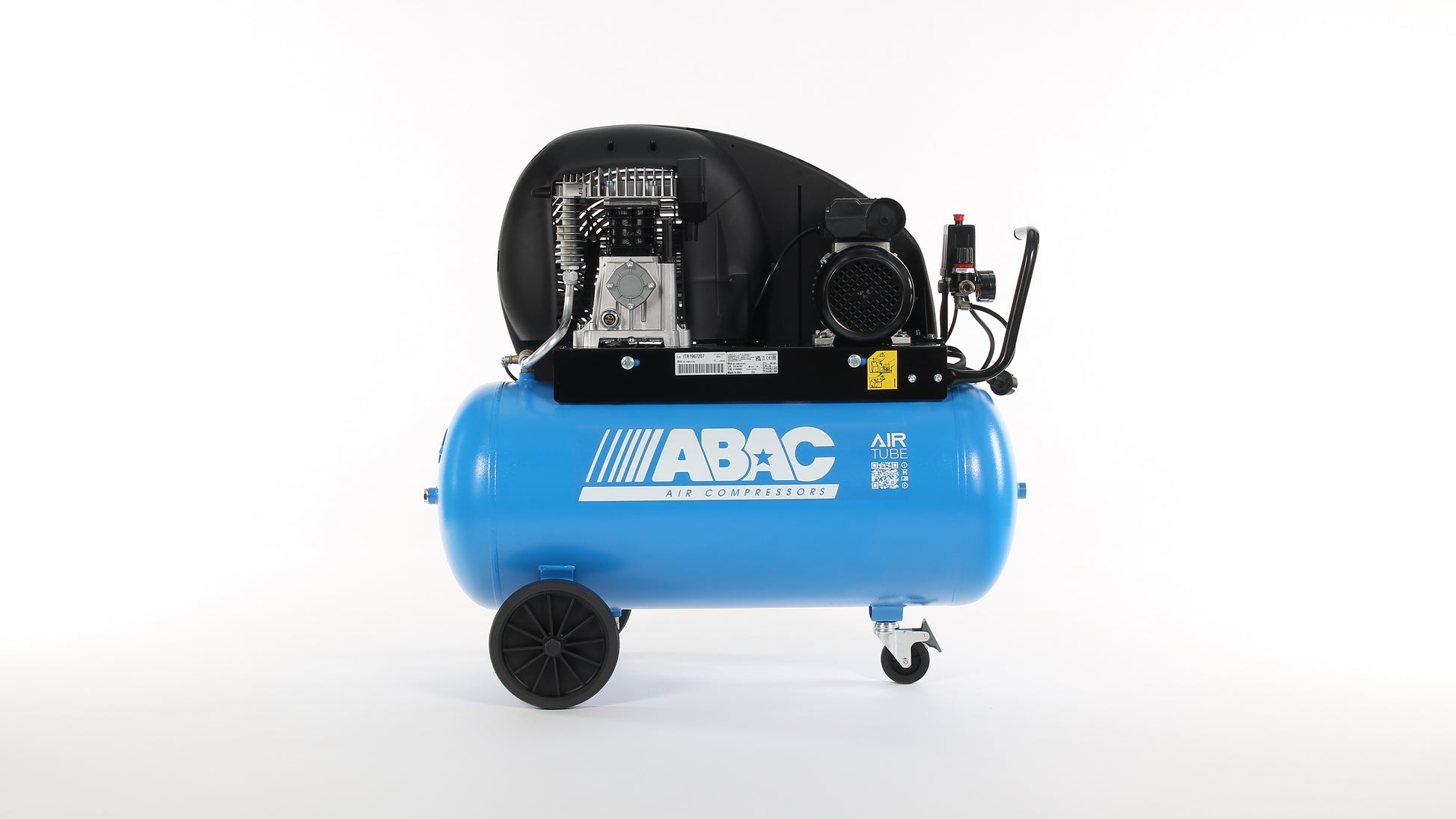

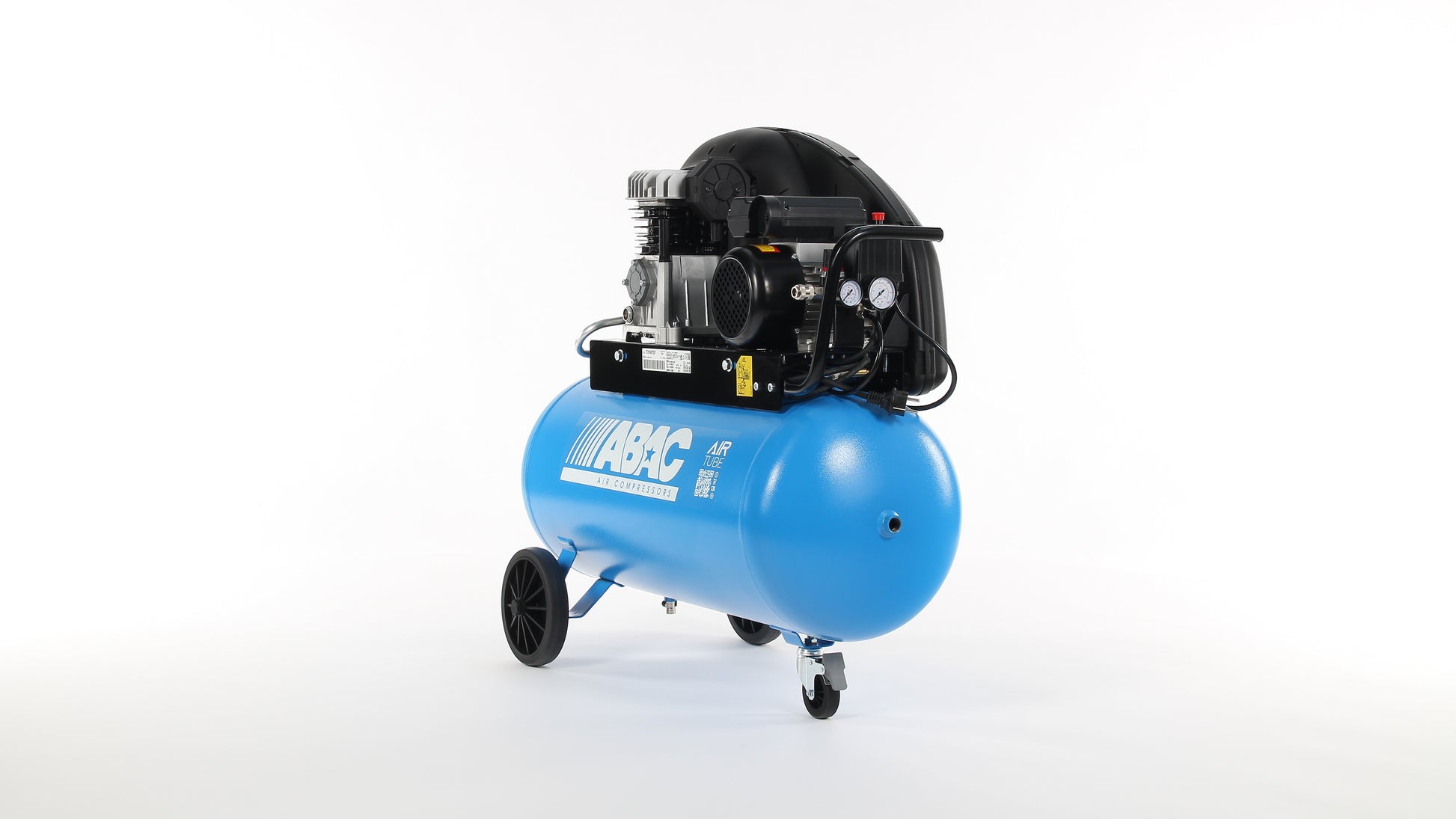

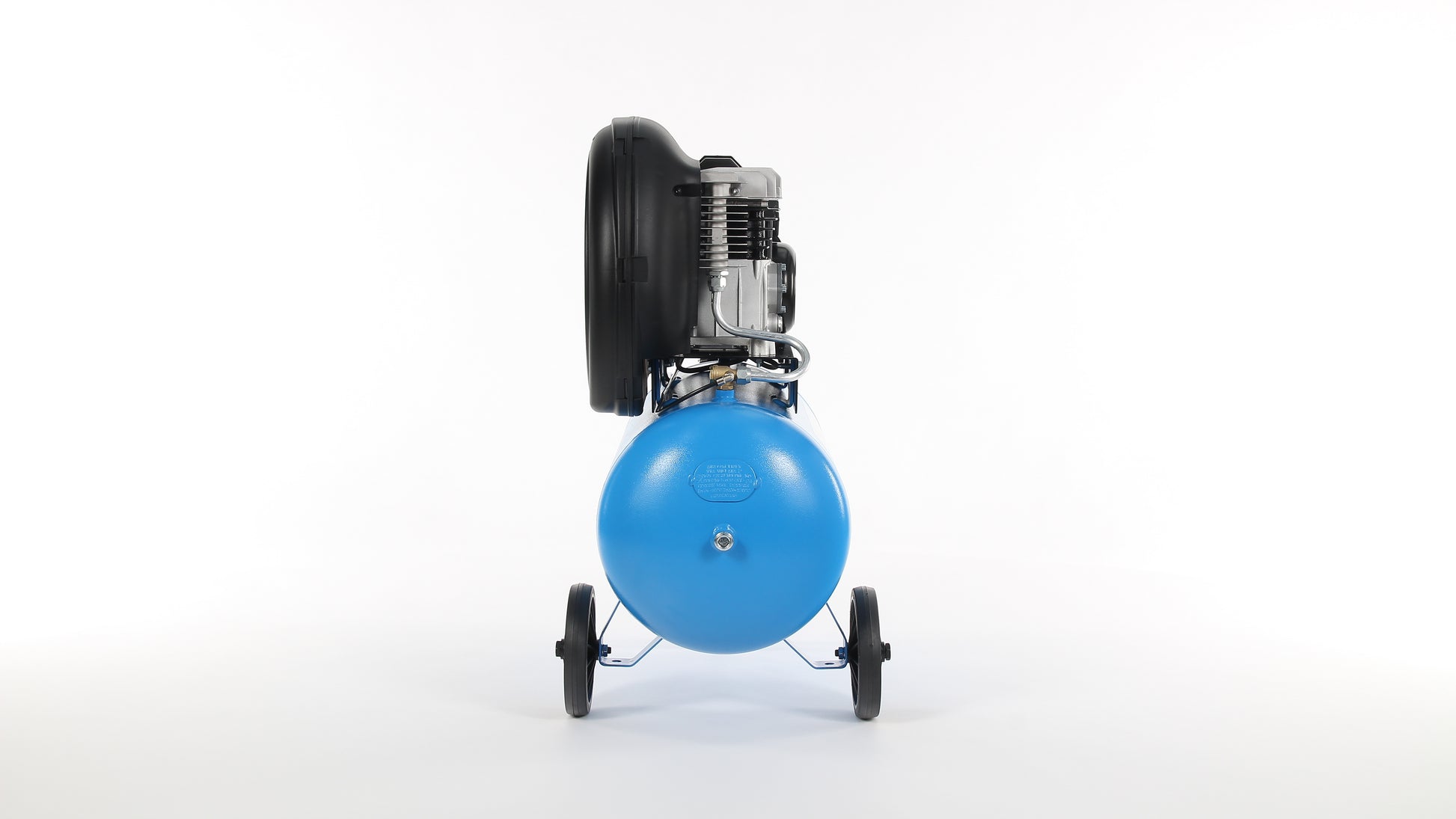

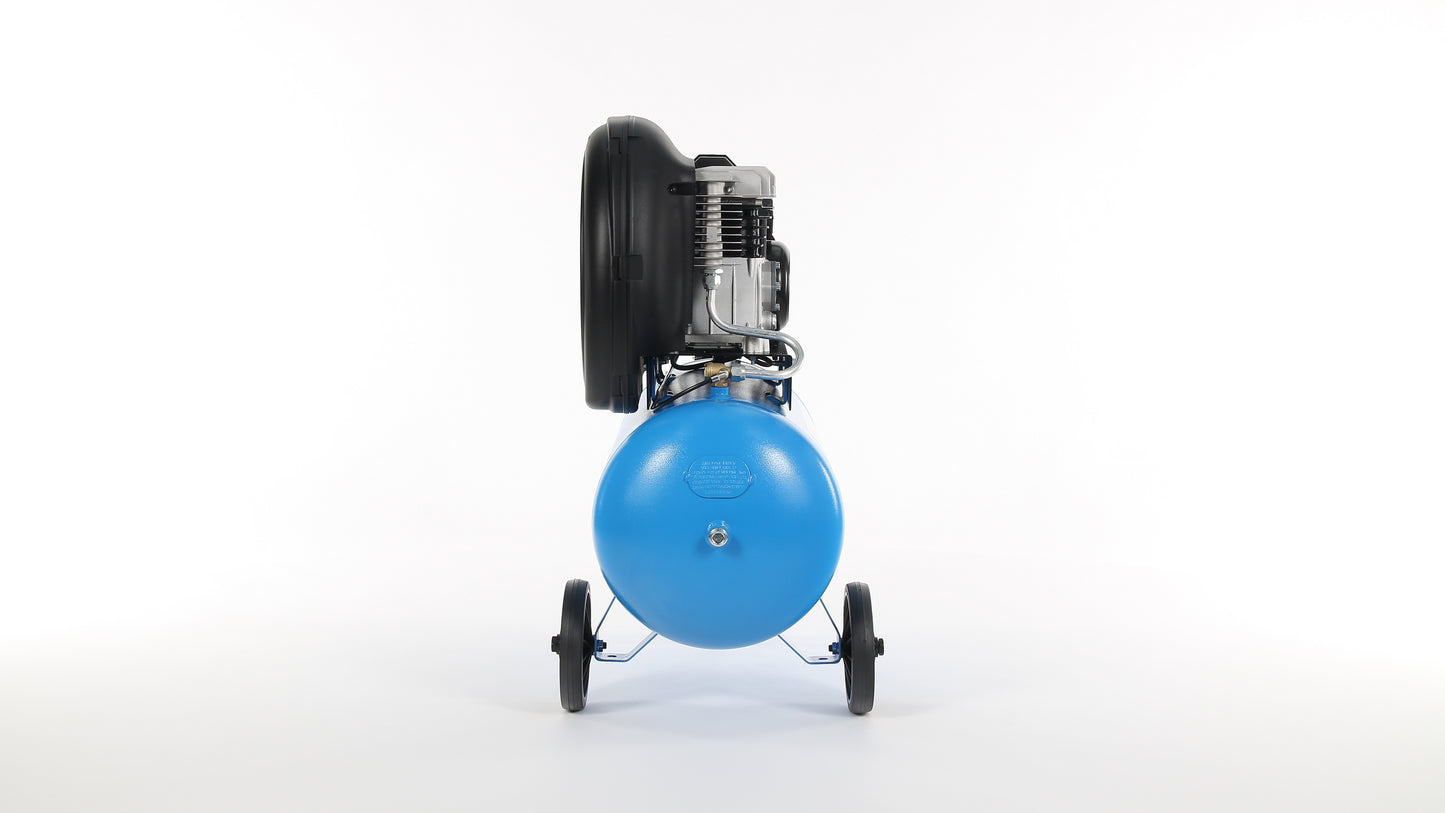

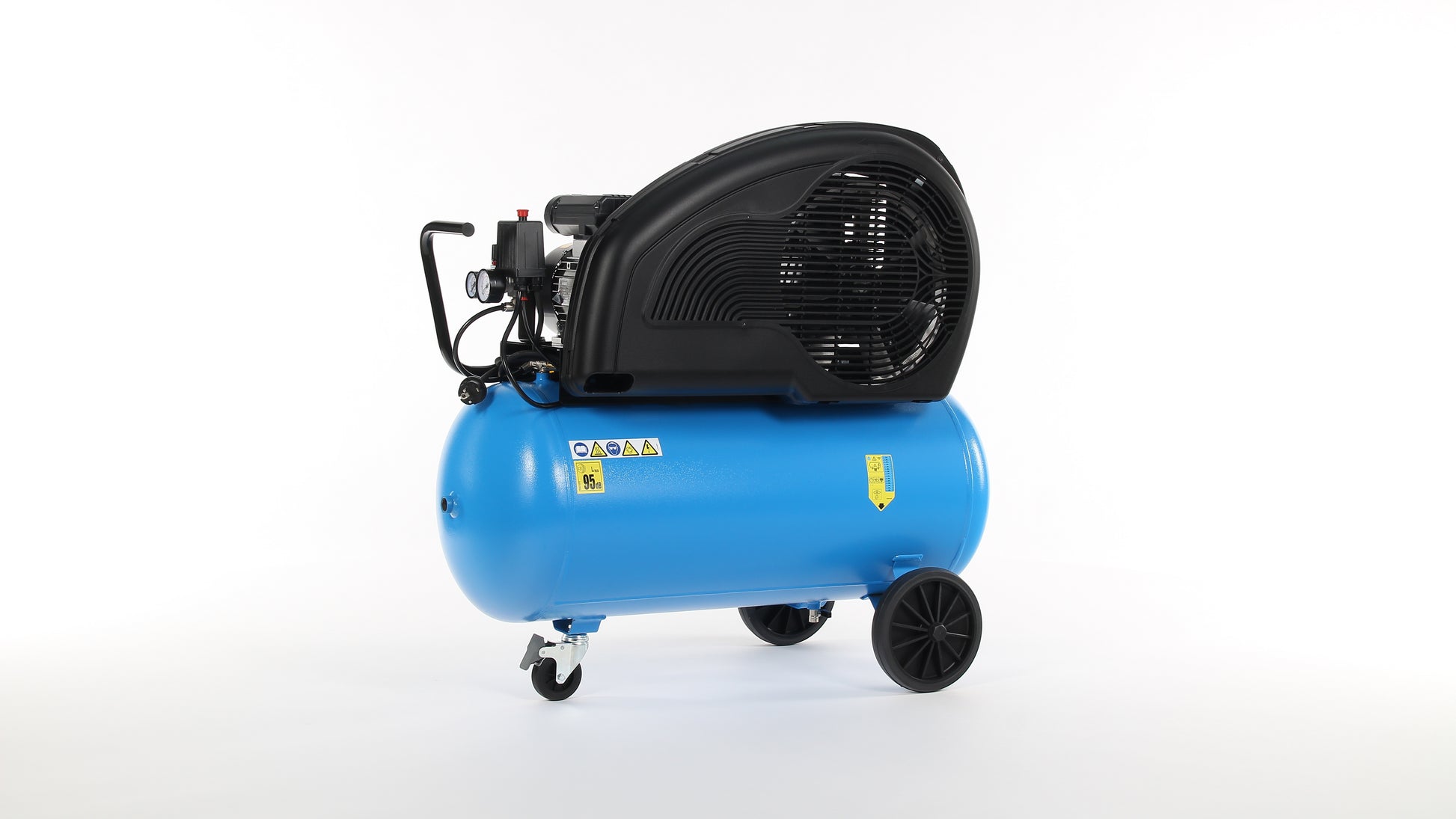

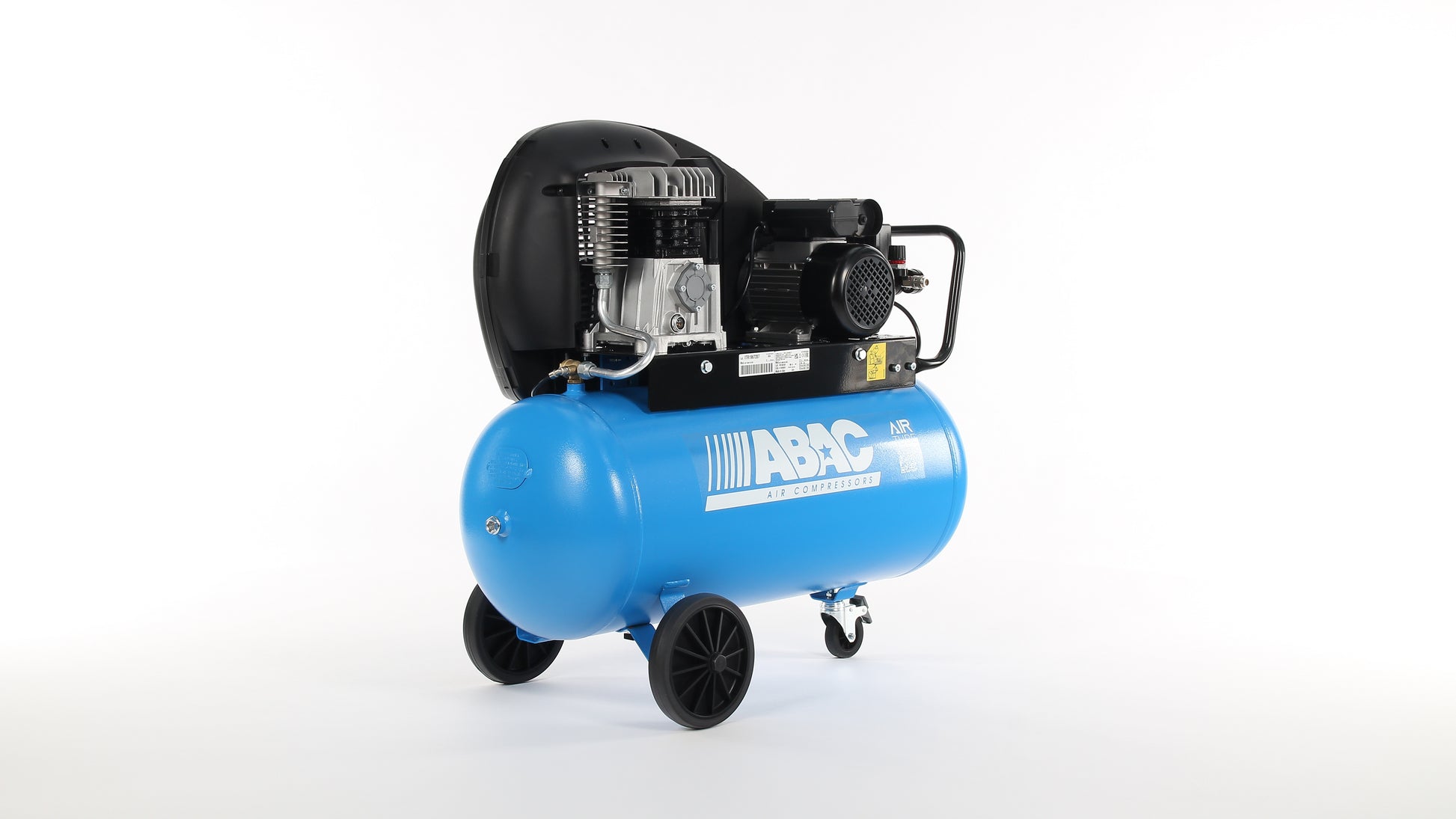

4116028217 ABAC Compressor Extensive A29B CM3 - 3Hp, 10Bar, 90lt vessel
4116028217 ABAC Compressor Extensive A29B CM3 - 3Hp, 10Bar, 90lt vessel
SPECIAL PRICE until end of June 2026
| Specification | Value |
|---|---|
| Performance data | |
| Max Pressure (Bar) | 10 Bar |
| Max Pressure (Psi) | 145 PSI |
| Pump speed | 1300 Rpm |
| Vessel size (lt) | 90 Litre |
| Vessel size (gal) | 19.8 Gal |
| Configuration | Tank Mounted |
| Air Displacement (l/min) | 320 l/min |
| Air Displacement (cfm) | 10.9 Cfm |
| Lubrication | Oil Lubricated |
| Pump Element | PAT24A |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Noise Level (LPA) | 75 dB(A) |
| Noise Level (LWA) | 95 dB(A) |
Click here for full ABAC Brochure
ABAC EXtensive range is the result of meticulous engineering, aimed at delivering a product that doesn’t compromise on performance or value.
The EXtensive range from ABAC is designed to meet every requirement, offering versatile solutions that are suitable for all users. The 200mm rear wheels are among the most robust on the market and provide excellent stability. With a power of up to 5.5hp, it can cover a wide range of applications.
Design features:
- Robust single-side handle
- Air reservoir: capacity up to 270 litres
- 200mm rear wheels designed for high resistance, plus 2x pivoting front wheels with break
Technical features:
- Power range: from 2 to 5.5 horsepower
- Technology: single and double stage pumps with aftercooler
- Power supply: 230/400 V – 1 or 3 Phases – 50/60 Hz
- Air delivery: reliable pressure switch with single exit reducer
